Story

This is a tutorial made by Seeed Studio. Watch the original video:

What are SenseCAP S210X LoRaWan Sensors

With the IP66 rating, -40 ~ +85C ° operating temperature, and built-in 19Ah high-capacity battery, combined with the device’s low power consumption, the SenseCAP S210X series can operate in harsh outdoor environments for up to 10 years with a range of up to 10km. The built-in Bluetooth facilitates setup and greatly reduces large-scale deployment costs. Users can focus on application development with the easy set-up, and start retrieving data in a few steps. Just install the device, bind it using the QR code and configure the network, then data can be viewed from the SenseCAP portal and SenseCAP Mate APP, which supports popular IoT protocols such as HTTP and MQTT.

Check More：https://www.seeedstudio.com/catalogsearch/result/?q=S210x

Things used in this project

Hardware components
	Seeed Studio SenseCAP S2104 - LoRaWAN Soil Moisture and Temperature Sensor	×	1	Seeed Studio
Software apps and online services
	Seeed Studio SenseCAP Mate App			Google Play

Configure it on SenseCAP Mate APP: Get Data in 4 Steps

You can download the SenseCAP Mate App and config the device via Bluetooth. Register a SenseCAP account to bind your device.

Download SenseCAP Mate App:

• SenseCAP Mate App for iOS on the App Store
• ​SenseCAP Mate App for Android on the Google Play Store

First,

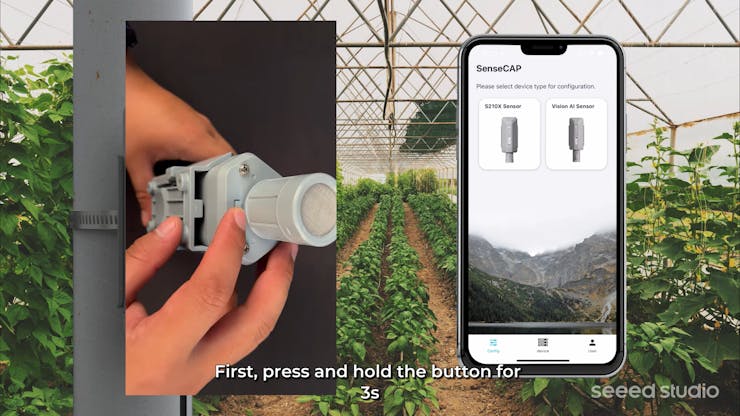

Press and hold the button for 3 seconds until the green LED blinks. Go to the App click setup and select the device. You can see the device information and measure the real-time sensor values.

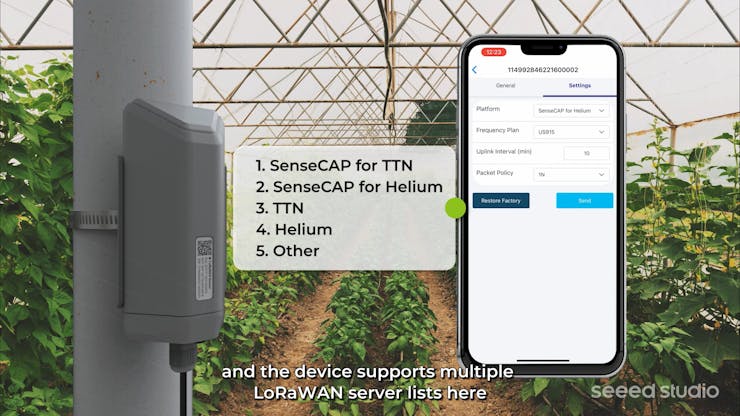

For the first power round, go to the settings you need to select the frequency plan and the device supports multiple LoRaWAN server lists here

You can also set uplink interval and packet transmit policy, click send, and the device will reboot.

You will see the LED breathing and followed by a quick blinking. Congratulations! The device has joined the network! ;)

Next,

let's bind the device into your account.

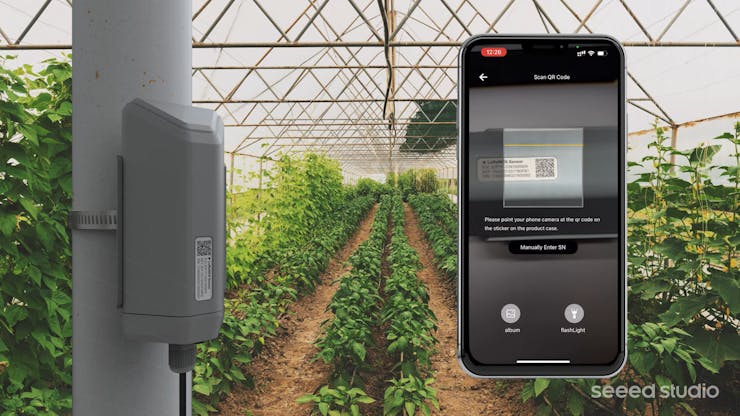

Go to the device, click add device and use your camera to scan the QR code on the device. Set a name and you can check the sensor's latest and historical data.

Furthermore,

you can log into the cloud portal with the same account, and manage devices create charts, or export the history data.

Pressing and holding the button to enter configure mode, click update select device. And download new firmware. The device will start upgrading itself in the short term.

Finally,

you are ready to install the sensor in the field. Mount the bracket on the wall or tie it on a pole.

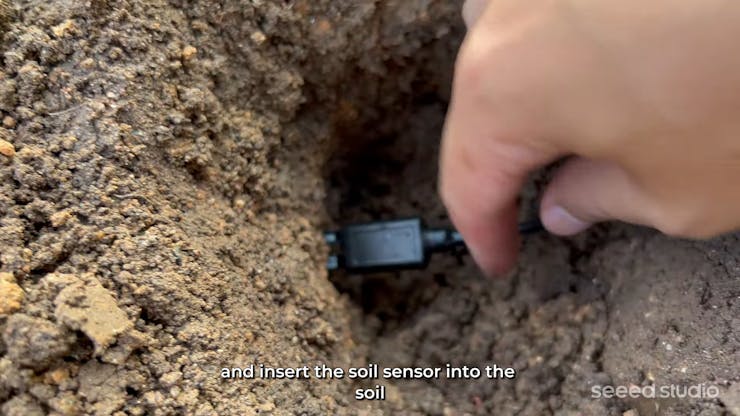

Keep the temperature and humidity sensor probe downwards and light sensor probe upwards and insert the soil sensor into the soil and bury it with enough soil.

Now everything is set.
